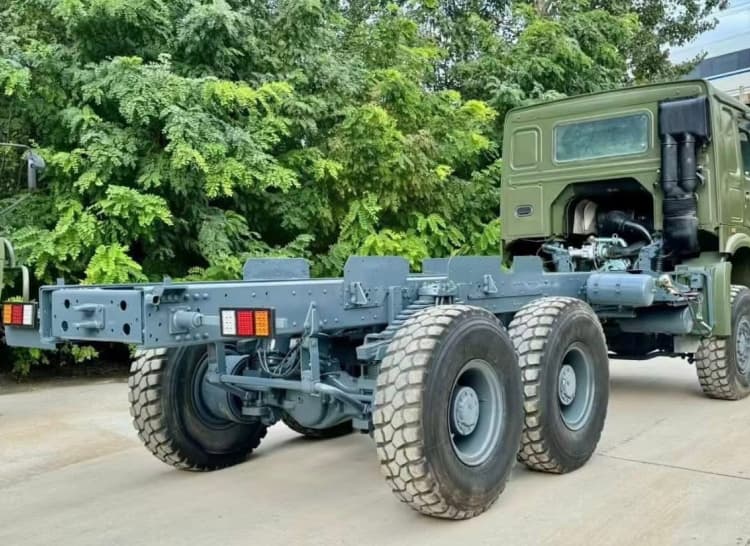

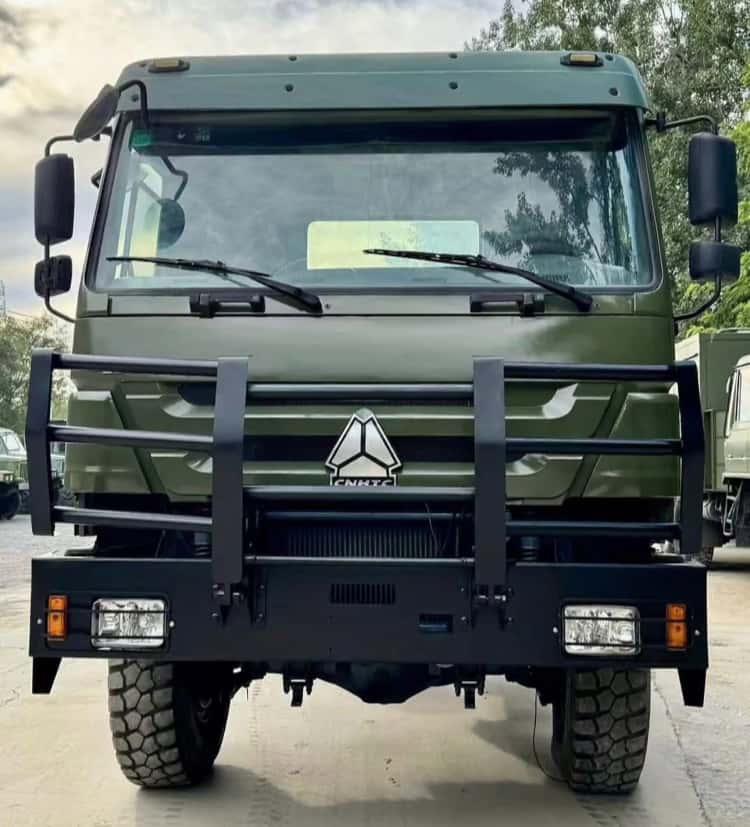

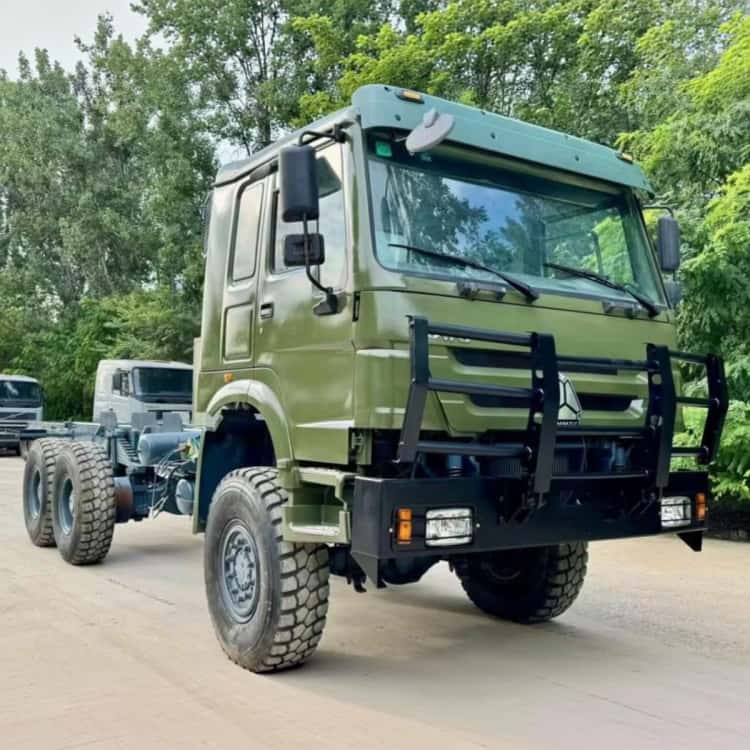

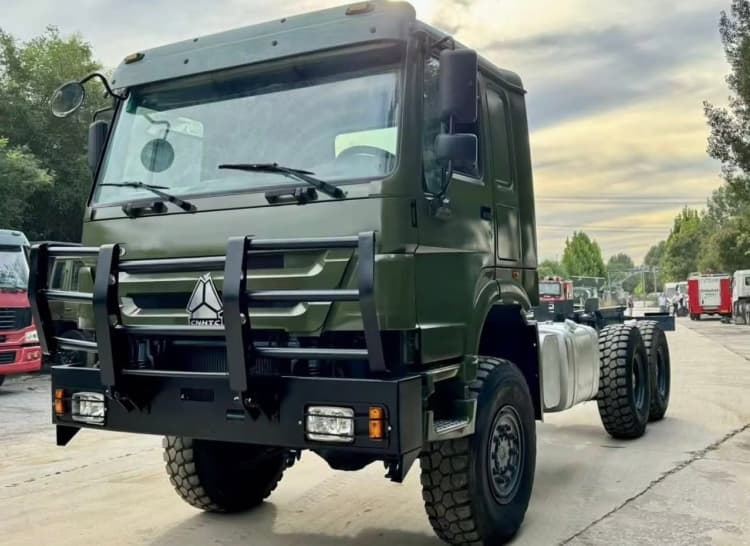

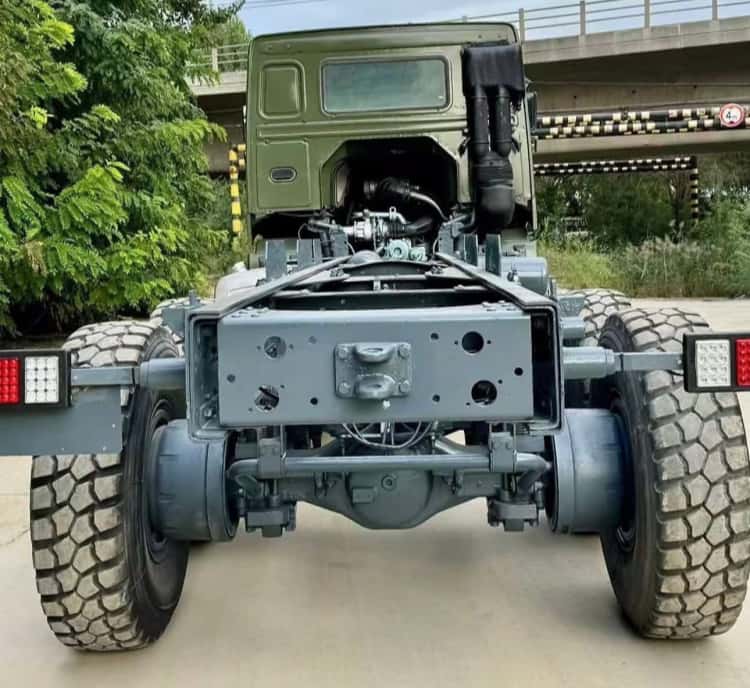

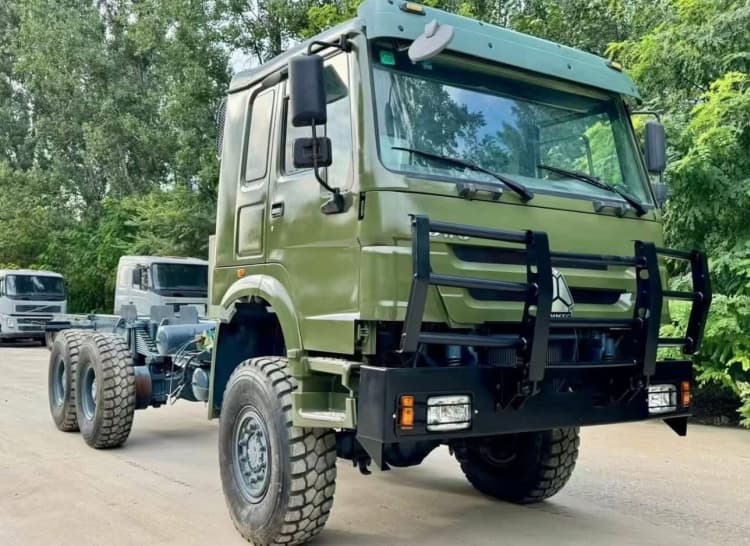

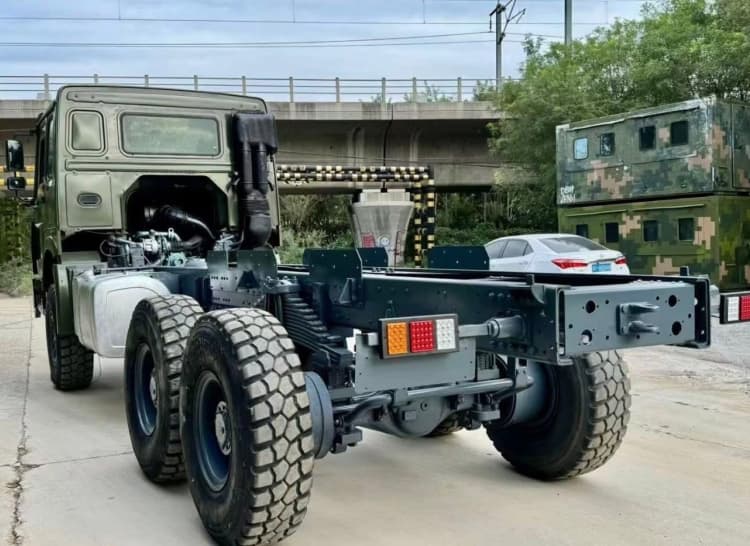

Reman Howo 6×6 Chassis Truck
REMAN ROAD reman Howo chassis 6×6 addresses typical off-road wear on transfer case and axle differential assemblies, offering a cost-effective alternative to brand-new all-wheel-drive chassis.
Reman Chassis 6×6 Description
- Off-road 6×6 chassis endure intense torsional load, shock impact and mud corrosion, leading to unique wear patterns rarely seen on highway trucks.
- This reman Howo chassis 6×6 carries out targeted fatigue testing on transfer case, differential lock components and cross-country suspension. All aged seals, clutch parts and driveline fasteners are mandatorily renewed.
- REMAN ROAD reman 6×6 truck chassis helps refitting teams build reliable all-terrain vehicles while cutting capital expenditure and meeting circular economy ESG requirements for field operation fleets.
Specification Table
- Model: Reman Howo Chassis Truck 6×6
- Engine: Remanufactured engine, full disassembly + dynamometer bench test, performance reset to OEM near‑new standard
- Axle: Heavy‑duty reinforced axles, reman NDT ultrasonic crack inspection, bearings & seals fully renewed
- Gearbox: 10‑speed manual with PTO interface, remanufactured, component screening, wear calibration and PTO function verification
- Frame Main Beam: Original heavy‑duty frame, reman full‑range NDT scanning, mounting‑point thread repair & deformation correction
- Cab: Original HOWO cab, reman structural inspection, rust removal and interior refurbishment
- Fuel Tank: 400L steel fuel tank, cleaned, pressure‑tested and leak‑checked during reman workflow
- Suspension: Multi‑leaf spring, reman fatigue inspection, bushings & shock absorbers mandatory replacement
- Brake System: WABCO brake assembly, reman overhaul of valves, air chambers, all rubber seals replaced

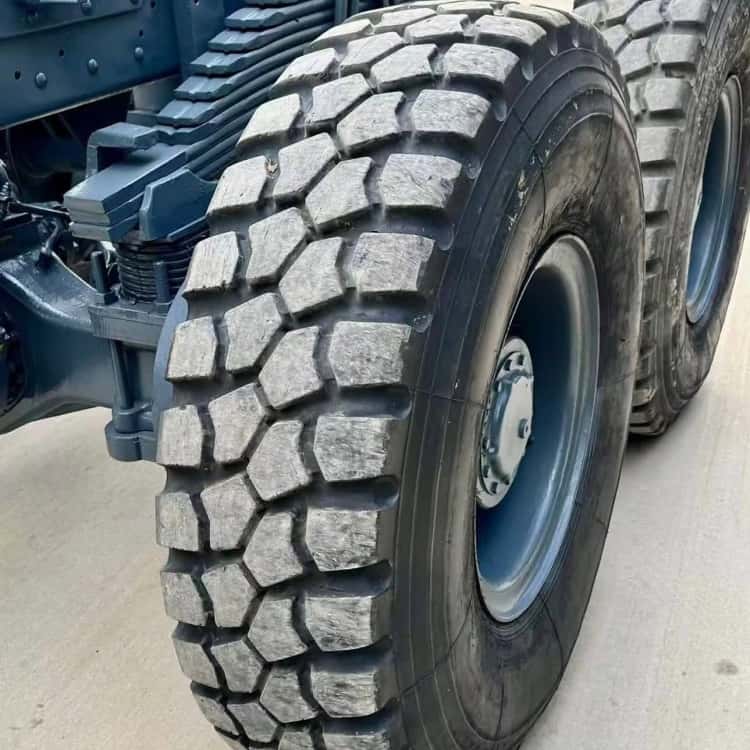

- Wheel & Tyre: Heavy‑duty tyres, wheel hub inspection, bolt torque calibration
Unique Reman Inspection Focus for 6×6 All-Wheel-Drive Driveline
The 6×6 off-road bare chassis relies on transfer case, inter-axle and wheel differential locks to deliver traction, which creates distinct failure modes different from 4×2 /8×4 highway chassis. These assemblies require dedicated reman evaluation.
- Transfer case full teardown and inspection: check gear tooth pitting, bearing clearance and seal housing deformation caused by frequent differential lock engagement under heavy off-road load.
- Differential lock components inspection: verify friction plate wear and pneumatic/hydraulic actuation function; failed locking assemblies must be replaced to guarantee reliable on-demand traction switching.
- Driveline universal joint and spline shaft measurement: cross-country shock loads accelerate spline abrasion, all spline surfaces are measured for dimensional tolerance during reman.
- Bench test for full driveline assembly: simulate low-speed, high-torque off-road working state to validate smooth power distribution across 3 axles and stable locking function.
Corrosion & Fatigue Reman Repair for Off-Road Reinforced Frame
6×6 chassis work in mud, saline and humid field environments, which brings hidden corrosion and frame torsional fatigue, making anti-corrosion treatment a core part of reman workflow.
- Strip old paint and rust completely from the whole frame, use ultrasonic NDT to scan corrosion thinning areas and torsional micro-cracks at crossmember connection points.
- Perform dimensional straightening for frame crossmembers deformed by off-road impact; reinforce weak zones per OEM specification if material thickness remains within usable range.
- Conduct full frame anti-corrosion pretreatment and heavy-duty coating after defect repair, improving resistance against mud, salt water and field moisture for future off-road missions.
- Record corrosion inspection data in reman traceability files, helping refitting customers understand residual structural safety margin before installing heavy off-road superstructures.
RFQ
- Q1: What core items should be covered in refitting‑enterprise procurement checklist for reman 6×6 truck chassis?
A1: 1. Check pre‑reman qualification and frame mounting‑point NDT records. 2. Confirm full component‑level disassembly has been implemented. 3. Verify key‑assembly bench‑test reports for engine, transmission‑PTO and axles. 4. Review component‑grading records and mandatory replacement logs of fatigue‑limited parts. 5. Confirm complete reman traceability documents can be provided, clarify warranty scope for reman‑processed chassis assemblies. - Q2: What are the main differences between reman truck chassis 6×6 and finished‑tipper remanufacturing?
A2: Reman tipper truck chassis focuses heavily on inspection and restoration for frame mounting holes, reinforcement zones and PTO power‑output interfaces for later refitting. It expands NDT coverage to all super‑structure connection positions. Mandatory acceptance items are chassis‑level component bench‑tests, while finished‑vehicle full‑load dumping simulation test is not required for bare‑chassis products. - Q3: Can a low‑mileage collision‑damaged bare chassis become a qualified reman 6×6 truck chassis?
A3: No. Mileage cannot judge bare‑chassis reman suitability. Once the frame suffers heavy‑collision‑caused unrecoverable distortion or hidden crack damage, regardless of low mileage, the bare chassis will be eliminated in pre‑reman screening and cannot enter formal reman workflow. - Q4: How should refitting factories distinguish genuine reman chassis 6×6 from superficially refurbished second‑hand chassis?
A4: Do not judge by paint appearance. Focus on objective technical proof: confirm full‑component‑level disassembly is completed, check frame mounting‑point NDT inspection reports, review component‑grading and fatigue‑part replacement logs, and request complete reman traceability packages. Missing above technical documents indicates high risk of pseudo‑remanufactured bare chassis.
