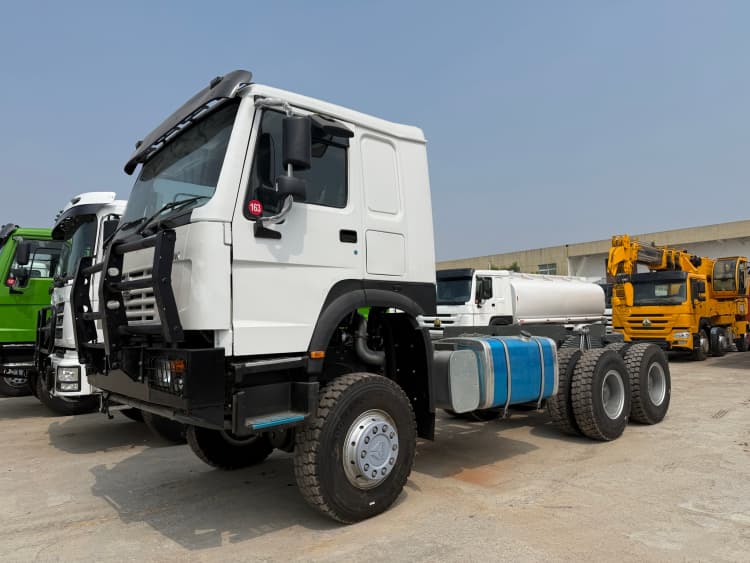

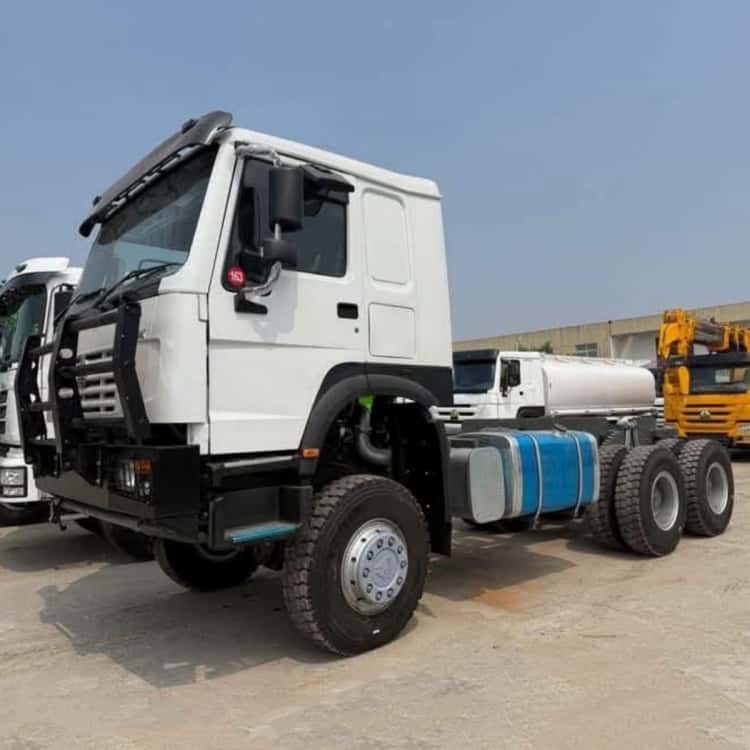

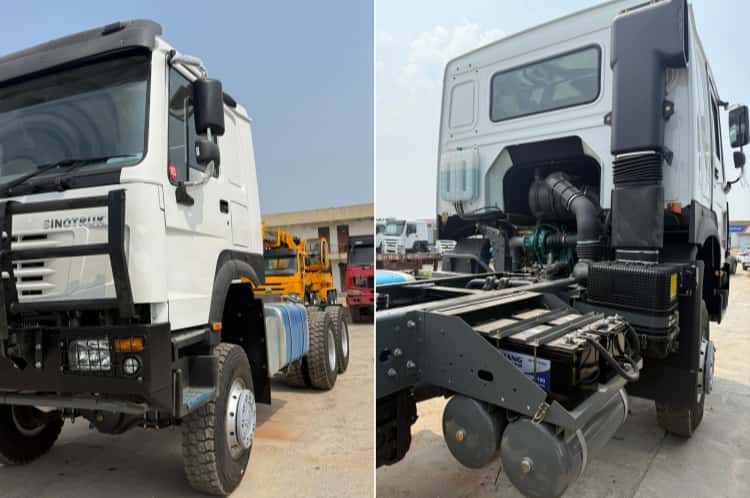

Reman Howo Chassis Truck 6×4
REMAN ROAD reman Howo chassis truck 6×4 eliminates accumulated chassis‑level mechanical fatigue, providing a reliable base platform for various custom upper‑body conversions under harsh site conditions.
Standardized Reman Howo Chassis 6×4 Description
- Designed as a flexible base platform for special‑vehicle refitting, REMAN ROAD reman Howo chassis truck 6×4 conducts targeted reman treatment on frame mounting points, power take‑off interfaces and suspension assemblies.
- Instead of repairing only obvious faults, the workflow eliminates invisible wear and material fatigue across the whole chassis, giving fleet buyers a high‑reliability foundation to build customized work vehicles without the high expenditure of brand‑new bare chassis.
Specification Table
- Model: Standardized Reman Howo Chassis Truck 6×4

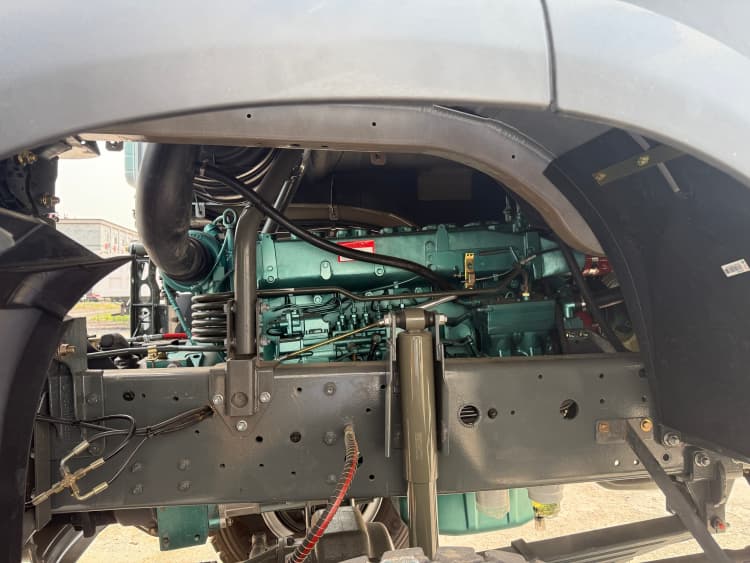

- Engine: WD615.47, remanufactured, full disassembly + dynamometer bench test, performance reset to OEM near‑new standard
- Axle: Heavy‑duty reinforced axles, reman NDT ultrasonic crack inspection, bearings & seals fully renewed
- Gearbox: 10‑speed manual with PTO interface, remanufactured, component screening, wear calibration and PTO function verification

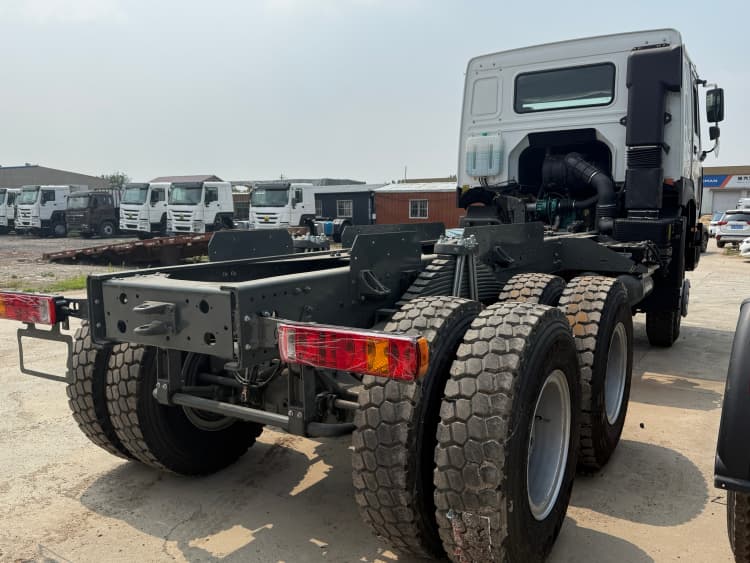

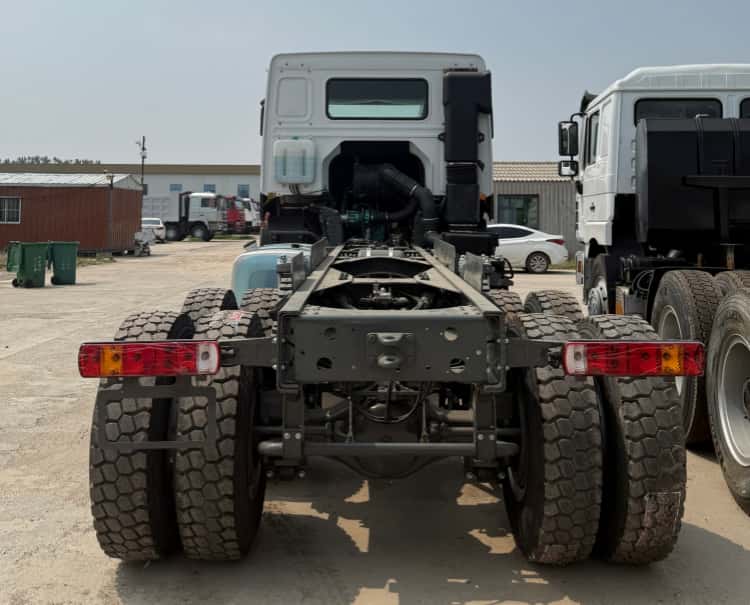

- Frame Main Beam: Original heavy‑duty frame, reman full‑range NDT scanning, mounting‑point thread repair & deformation correction

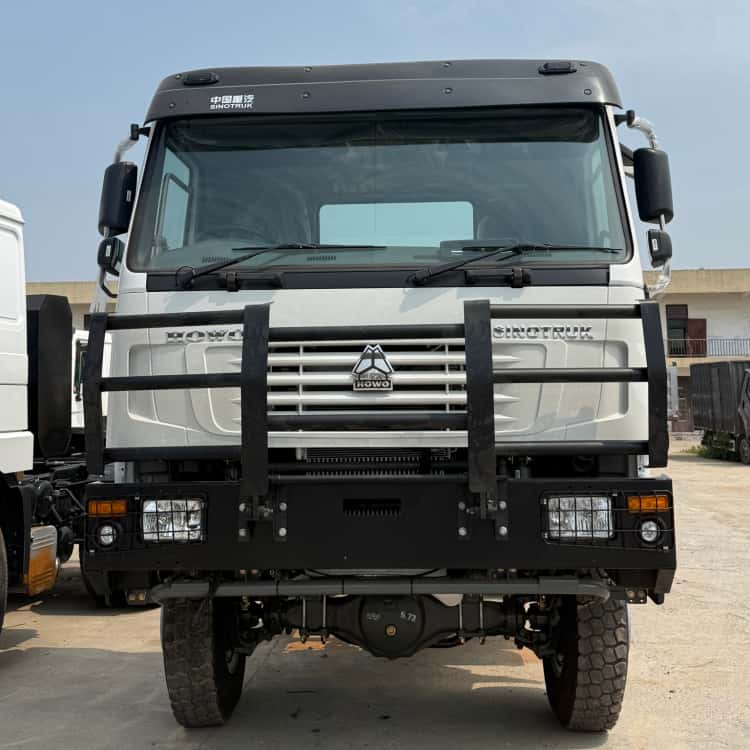

- Cab: Original HOWO cab, reman structural inspection, rust removal and interior refurbishment

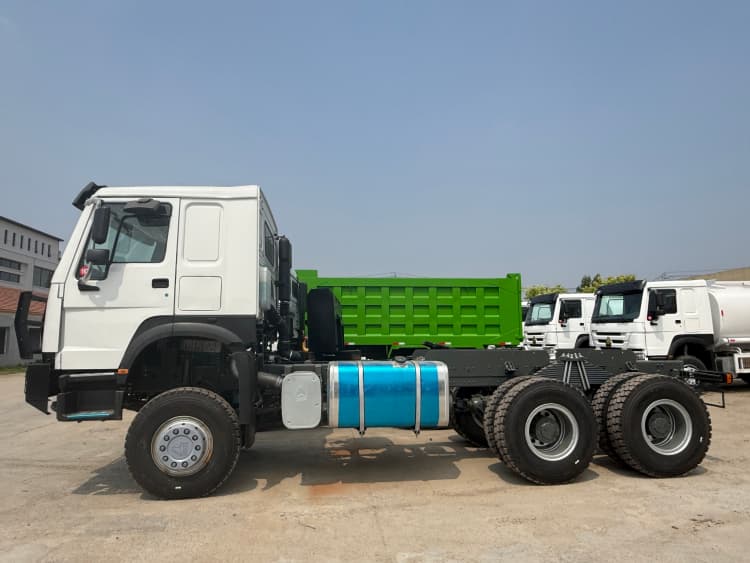

- Fuel Tank: 400L steel fuel tank, cleaned, pressure‑tested and leak‑checked during reman workflow
- Suspension: Multi‑leaf spring, reman fatigue inspection, bushings & shock absorbers mandatory replacement
- Brake System: WABCO brake assembly, reman overhaul of valves, air chambers, all rubber seals replaced
- Wheel & Tyre: Heavy‑duty tyres, wheel hub inspection, bolt torque calibration
What Qualifies A Used Chassis for Formal Remanufacturing?
Not every pre‑owned heavy‑duty bare chassis can enter reman chassis workflows. Pre‑reman chassis qualification screening acts as the first critical barrier, directly determining the safety and reliability after subsequent superstructure installation.
- The main frame must be free of penetrating cracks, permanent torsional distortion and collision‑caused irreversible deformation.
- High‑value core assemblies including engine block, axle housings and steering housing must pass non‑destructive fatigue testing.
- All frame mounting holes and reinforcement zones cannot have enlarged deformed holes or welding‑repair‑caused material damage.
- High‑mileage chassis with intact structural foundation are acceptable reman candidates; low‑mileage chassis suffering heavy collision damage will be eliminated directly.
Differences Between Reman Howo Chassis and Reman Vehicle
Bare chassis are reserved for later custom superstructure fitting, so their reman focus differs greatly from finished tipper or tractor reman projects.
- Reman Howo chassis workflow adds dedicated inspection and restoration for frame mounting holes, PTO interfaces and reserved superstructure connection zones.
- Frame NDT scope expands to all refitting‑relevant reinforcement positions, not only main‑beam stress points.
- Power‑take‑off assemblies, transmission output ends and chassis wiring harness receive targeted reman processing for future external‑device power output.
- Full‑vehicle load simulation test is omitted; instead, chassis‑level bench testing for powertrain, steering and braking becomes mandatory acceptance item.
RFQ
- Q1: What preconditions must a Howo bare chassis satisfy to enter formal reman processing?
A1: The main frame must have no penetrating cracks or permanent collision‑caused torsional deformation. Core cast assemblies such as engine block and axle housing need to pass non‑destructive fatigue inspection. Chassis with deformed mounting holes or welding‑caused frame material damage will be eliminated. Only bare chassis retaining complete structural integrity can proceed to subsequent full‑disassembly reman chassis workflow. - Q2: Does reman Howo chassis truck 6×4 mean replacing all original assemblies with brand‑new spare parts?
A2: No. Formal reman Howo chassis truck 6×4 follows strict component‑grading rules. Qualified high‑value assemblies passing fatigue detection and dimensional tolerance check will be cleaned, repaired and reused. Fatigue‑limited consumables such as bearings, rubber pipelines and high‑stress fasteners must be mandatorily replaced. Blind full replacement of all parts will lose reman’s core economic and carbon‑saving advantages. - Q3: Can visual inspection replace NDT testing for reman Howo chassis 6×4 frame mounting points?
A3: It cannot. Visual inspection can only find surface cracks. Subsurface micro‑cracks around mounting holes are invisible, yet these defects will expand rapidly after superstructure installation under working load. Ultrasonic or magnetic‑particle non‑destructive testing is mandatory for standardized reman bare‑chassis production for refitting scenarios. - Q4: What is the difference between reman Howo chassis 6×4 asset‑life reset and ordinary service‑life extension?
A4: Ordinary repair only fixes failed assemblies and extends the residual usable time of an aged bare chassis. Reman asset‑life reset eliminates accumulated fatigue across the whole chassis system, restores key mechanical performance to OEM near‑new standards, and activates a completely new asset lifecycle for the bare‑chassis refitting platform.
